Ritchie HF-743W Helmsman Compass - Flush Mount - White [HF-743W]
Regular price
$285.52
Sale price
$285.52
Regular price
$0.00
Unit price
Product description

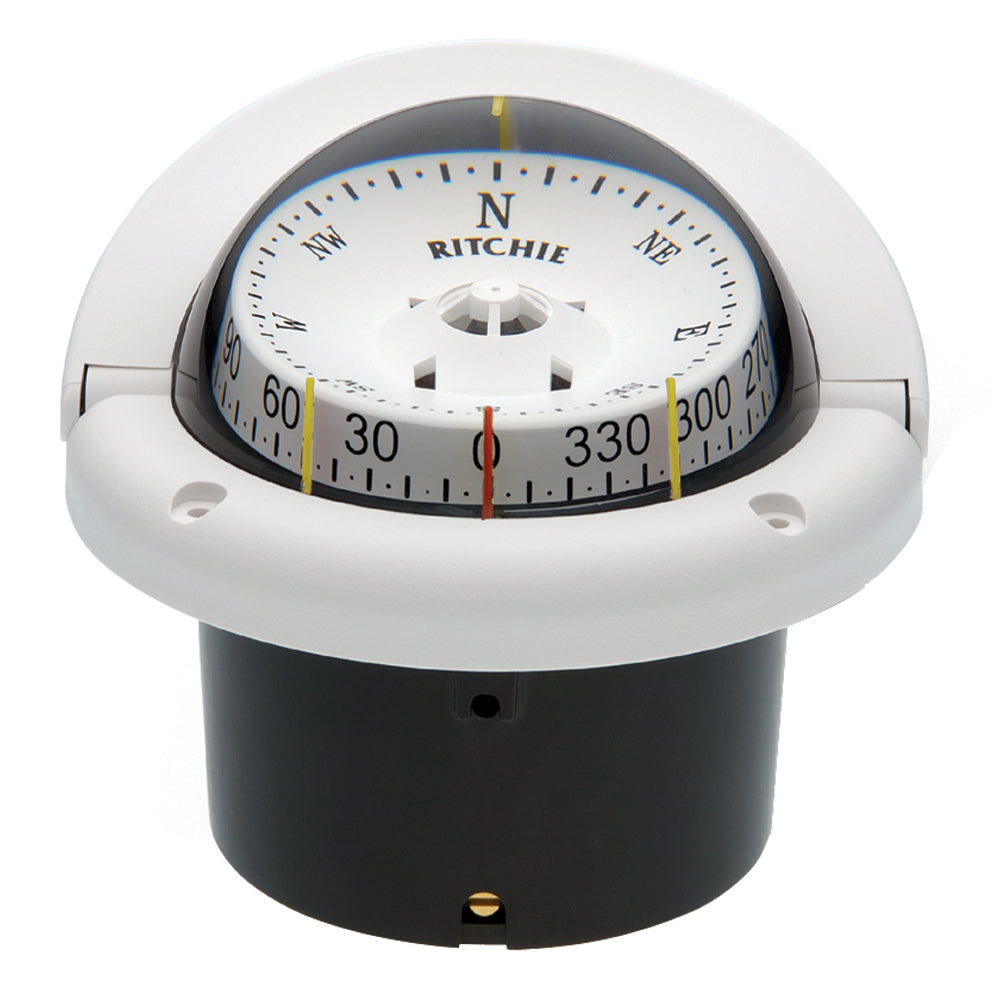

HF-743W - Helmsman
Features:
- 3 3/4″ (95 mm) Open Face Dial or CombiDial
- Easily Installed, Fits 4″ (102 mm) Mounting Hole
- Exclusive Built-in Green NiteVu Night Illumination
- Built-in Compensators to Easily Adjust for Deviation
- Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
- Powerful DirectiveForce Magnets for Fast Heading Lock-on
- Movable Sun Shield
- 45 Degree Lubber Lines
- High Temperature Composite Construction for Extended Operating Range
- Adapter Rings Available. Sold separately. 6″ (153 mm)
- 100% Repairable
- Exclusive 5-Year Ritchie Warranty
Approx. Shipping Weight: 2lbs (907g)
Notes:
All magnetic compasses come standard with 12v lighting. 24 & 32v lighting options are available.
Some custom built OEM models may have different lighting.
Specifications:
- Read: Both
- Lubber Lines: Yes
- Backlight: Yes
- Mounting Style: Flush

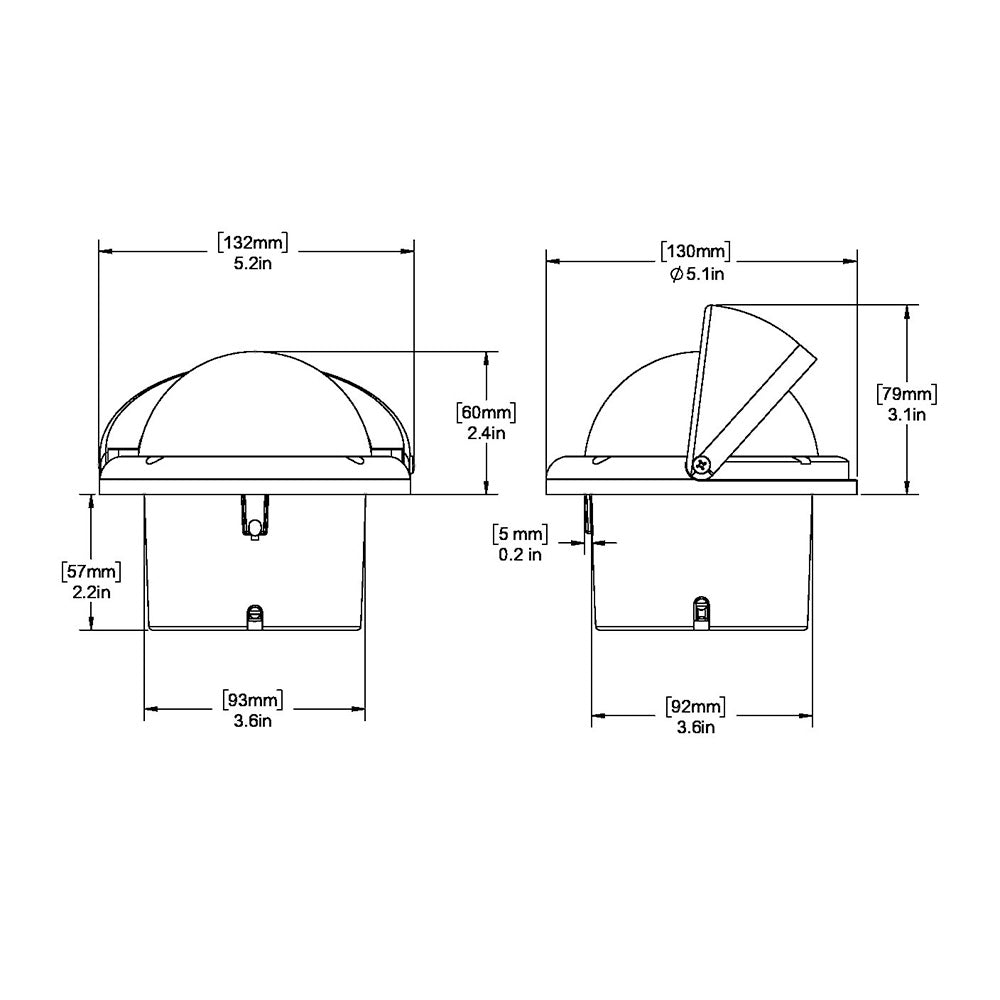

- Box Dimensions: 7"H x 8"W x 8"L WT: 2.1 lbs
- UPC: 010342138286
Quick Guide (pdf)
Owner's Manual (pdf)
